GdUnit and C# Testing
To use the GdUnit C# testing API, you should have Godot-Mono version 3.3.x installed.
How to enable the C# test support?
Before using the GdUnit C# test API we need to configure the project. Official Godot documentary
Enable the GdUnit C# Support
GdUnit3 uses the C# language standard 10.0 and therefore we need to adjust the project settings.
- Open your Godot Editor Settings and configure mono builds to use:
- With GdUnit3 version 2.3.0 we fully support .Net6 and LangVersion 10 you have to swtich to
dotnet CLI
- With GdUnit3 version 2.3.0 we fully support .Net6 and LangVersion 10 you have to swtich to
-
Setup your Project
GdUnit3 C# API uses the framework netstandard2.1 to support the latest language standard
Open you project file (*.csproj), and change:- under section
<PropertyGroup>
- change the TargetFramework to
netstandard2.1
- add
<LangVersion>10.0</LangVersion>
- add
<CopyLocalLockFileAssemblies>true</CopyLocalLockFileAssemblies>
- change the TargetFramework to
- add the section
<ItemGroup>
see below- add
<PackageReference Include="gdUnit3Mono" Version="2.3.1-release*"/>
- add
- under section
- For C# 10 to work, you need the dotnet 6 SDK installed.
dotnet --list-sdks
6.0.101 [C:\Program Files\dotnet\sdk]
If no sdk 6.0 installed you can download it here
If you run in trouble with older SDK’s i suggest to uninstall it.
Here is a complete example of what your project should look like.
<Project Sdk="Godot.NET.Sdk/3.3.0">
<PropertyGroup>
<TargetFrameworks>netstandard2.1</TargetFrameworks>
<LangVersion>10.0</LangVersion>
<!--Force nullable warnings, you can disable if you want-->
<Nullable>enable</Nullable>
<CopyLocalLockFileAssemblies>true</CopyLocalLockFileAssemblies>
</PropertyGroup>
<ItemGroup>
<!--Required for GdUnit3 C#-->
<PackageReference Include="gdUnit3Mono" Version="2.3.1-release*"/>
</ItemGroup>
</Project>
Test you C# build settings

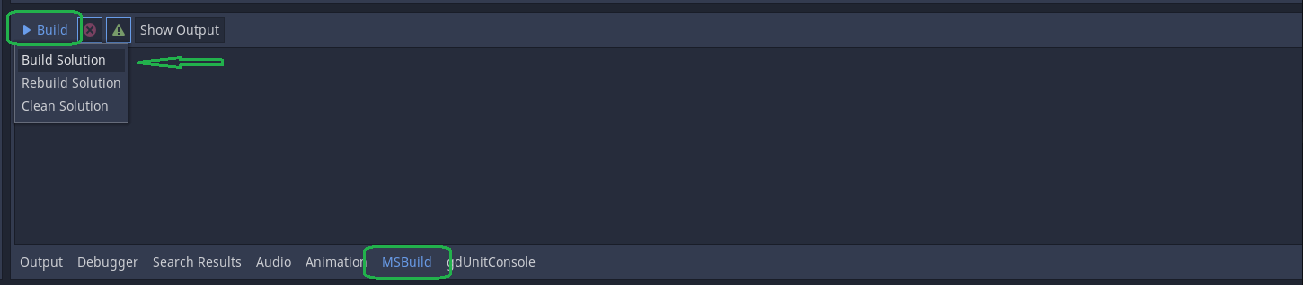

Open the `MSBuild` inspector on the bottom of the Godot editor and press `Build Solution`
![](/gdUnit3/assets/images/install/cs-build-test.png)
The output should show the project is build successfully.
Install Visual Studio GdUnit3 Extension
To run and debug C# sharp tests inside the VS-Code IDE you need to install the GdUnit3 extension
-
Click on the
Extensions
icon in the activity bar and search forGdUnit3
-
After successful installation you will find the GdUnit3 inspector in the activity bar.
GdUnit3 Extension Settings
You must first configure the GdUnit3 extension settings to set the path for Godot execution.
-
Press the settings button on the inspector
-
Change the path to where you have installed Godot-Mono on your system
Using GdUnit3 on VisualStudio-Code
GdUnit provides an VS-Code extension like the GdUnit-Inspector for the Godot editor.
The extension allows you to create run and debug C# sharp test direct inside the VS-Code IDE.
